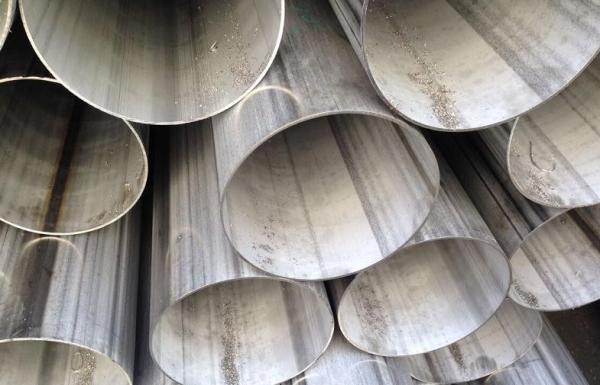

AISI 316 / 316L Welded Stainless Steel Pipe Hot Rolled SS Tube 20mm - 1000mm OD

Brand Name : Hainer Steel

Certification : ISO9001,SGS,CQC,BV, TUV etc.

Place of Origin : China

MOQ : 100Kgs/size

Price : Negotiation

Payment Terms : T/T, L/C at sight

Supply Ability : 5000Tons/Month

Delivery Time : 10-15 days

Packaging Details : Plastic bag in bundle,Wooden box,etc.

Model Number : 304/304L,316L,310S,904L etc.

Contact Now



AISI 316 / 316L Welded Stainless Steel Pipe Hot Rolled SS Tube 20mm - 1000mm OD





Quick Detail:



Product Name

ERW Welded Stainless Steel Pipe

Surface Finish

1. 2B Finish  2. Pickled Finished  3. Annealed&Pickled

Material

304/L, 316L/Ti, 310S etc.

Outside Diameter

12.7mm - 76.2mm

Wall Thickness

0.5mm-3.175mm.

Length

1000mm,2000mm,3000mm....12000mm

Market

USA,Canada,Japanese,European etc.





Description:

  1. Product Item No.: 0070welded-Cosco Steel
  2. Type: Round Or Oval
  3. Material: Main

  1. 4301/ SUS304/ AISI304/ S30400,

  1. 4306/ SUS304L/ AISI304L/ S30403,

  1. 4404/ SUS316L/ AISI316L/ S31603, etc.

  1. Standard:

  GB/T12771-2008, ASTM A312, ASTM A789, JIS G3448,

  DIN EN10216-5, DIN EN10217-7, etc.

  1. Size: 1/2” to 48”
  2. Wall Thickness: Sch5s,Sch10s,Sch40S
  3. Marking: Registered logo,Heat Number,Steel Grade,Standard,Size
  4. H.S Code: 7306.4000





Applications:



This type welded tubes/pipes be used in

  1. Industrial fluid conveying pipes
  2. Mechanical structural tubes
  3. Heat ex-changer and condenser tubes
  4. Walled water tubes
  5. Larger caliber industrial welded pipes etc.





Specifications



Designation: A312/A312M-04a

Standard specifications For Seamless,Welded,And Heavily Cold Worked Austenitic

Stainless Steel Pipe



Manufacture Process

ERW Welded ( ELD ) Pipe







Quality Inspection






  1. Metallographic Analysis
  2. Physical And Chemical Analysis
  3. Specification Eccentricity Test
  4. Mechanical Test
  5. PMI Test
  6. Eddy Current Test
  7. Large-Size Ultrasonic Flaw Test
  8. Ultrasonic Flat Test
  9. Thickness Test   etc.







Mechanical Requirements

 Grade   UNS Designation      Tensile Strength   Yield Strength

                                                  Min Ks i [M pa]   Min Ks i [M pa]

 TP304    S30400                             75 [515]         30 [205]

 TP304L   S30403                             70 [485]         25 [170]

 TP309S   S30908                             75 [515]         30 [205]

 TP310S   S31008                             75 [515]         30 [205]

 TP316L   S31603                             70 [485]         25 [170]

  ....          ....                                             .....               .....
  1. Specification No.
  2. Pipe
  3. Grade
  4. NPS
  5. Wall
  6. SMLES OR WELDED ...
  • ASTM A312
  • P
  • TP304
  • 12IN
  • 0.375 IN
  • WELDED .....





Our advantage

  1. Owned NBK Annealing Equipment
  2. Kinds of size production lines
  3. Good quality control system
  4. Good after sales services
  5. Good package
